- Size: 1000
- Place of Origin: Tengzhou Private Economic Development Zone
- Brand Name: Xiangyu
- Model Number: ZX9550CW/7550CW
- Weight: 1000.000 kg

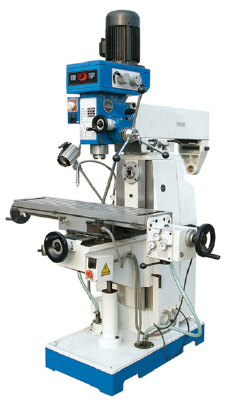

Main technical parameters of drilling and milling machine
ZX7550CW
ZX9550CW
Bore diameter (mm)
Fifty
Fifty
Maximum width of end milling (mm)
One hundred
One hundred and forty
Vertical milling maximum diameter (mm)
Twenty-five
28-30
Boring diameter (mm)
One hundred and twenty
120-160 (LI)
Max. tapping diameter (mm)
M16
M16-M18 (LI)
Spindle end to table distance (mm)
90-490
100-500
Spindle speed range (RPM)
(LI) 115-1750 (lying) 80-1300
40-1300 (LI) 115-1750 (lying)
Spindle stroke (mm)
One hundred and twenty
One hundred and twenty-five
Table size (mm)
1000 * 240
1000 * 240
Table travel (mm)
500 * 230
600 * 240
Exterior dimension (mm)
1280 * 1100 * 2080
1352 * 1285 * 2130
Motor power (kw)
2.2 (LI) /1.5 (lying)
0.85/1.5 2.2
Net weight / gross weight (kg)
1000/1100
1200/1350
