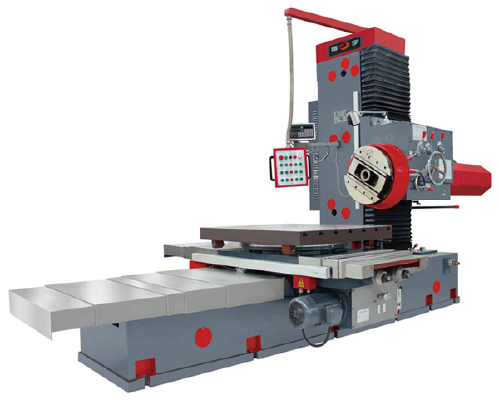

Machine structure:
The beautiful appearance, the overall layout of symmetry coordination;
On the bed, column, slide seat adopts rectangular guideway, good stability;
The guide taken since the cold hardening, high wear resistance;
The digital synchronous display, intuitive and accurate, it can improve work efficiency, reduce the cost.

Main technical parameters
Unit
TPX611
Spindle diameter
Mm
Phi 110
Taper of spindle
Morse 6#
Spindle speed range
R/min
(Level 12) 8-600
Spindle speed
Mm/min
Work in: 75; 125; 200 (in the
Spindle box travel
Mm
Nine hundred
Axial travel of spindle box
Mm
Four hundred
Flat rotary disc slide stroke
Mm
One hundred and sixty
Table longitudinal feed rate
Mm/min
(Level 6) 6-240
Table horizontal feed rate
Mm/min
(Level 6) 6-240
Working area (length * width)
Mm
1120 * 920
Table longitudinal travel
Mm
With protective cover: 1350
With tail seat: 900
Table horizontal stroke
Mm
With protective cover: 740;
Without protective cover: 950
Table bearing weight
Kg
Three thousand
Overall size (L * w * h)
Mm
4500 * 2400 * 2900
Net weight
Kg
Nine thousand
